Space Domain Awareness · Space electronic warfare

Own the picture above the atmosphere.

OAK Space extends the EW SUITE's first-principles orbital mechanics and SATCOM link-budget physics into the operational tools a real space picture needs — a multi-object catalog COP, conjunction screening, co-orbital RPO / proximity operations, manoeuvre and re-entry detection, and terrestrial up-link jammer geolocation. One workstation from the orbit to the operator.

Request a demo The SDA layer

UNCLASSIFIED · representational // no operational catalog, no real TLEs, no exploit content

The SDA operational layer

Physics first — then the picture on top

OAK Space sits on the suite's own space_model — Keplerian propagation with J2, link budgets and jamming geometry — and adds the operational SDA functions a watch floor runs.

Catalog COP

LEO imagers (incl. a close co-orbital pair), a GNSS-like MEO, a GEO comsat, a co-orbital inspector and a decaying fragment — sub-satellite ground tracks on a world map.

Conjunction screening

Pairwise close-approach across the catalog with coarse-then-fine time-of-closest-approach, miss distance, relative speed and a RED / AMBER / GREEN risk tier.

RPO / proximity ops

A chaser's range and RIC (radial / in-track / cross-track) components relative to a target — co-orbital proximity assessment in the target's own frame.

Manoeuvre detection

Residual growth of a measured arc against a propagated ephemeris flags a burn and estimates its epoch and Δv.

Decay & re-entry

Secular semi-major-axis decay from atmospheric drag yields an orbital lifetime and a re-entry epoch estimate.

Interference geolocation

Angle-of-arrival cuts from ground sites fix a terrestrial SATCOM up-link jammer, with a CEP estimate — space-EW, tied to the ground.

SDA Operations Console

The catalog, the conjunctions and the jammer — one screen

Multi-object catalog COP with sub-satellite ground tracks over a real offline Earth basemap (ETOPO relief + bathymetry)
Conjunction table with time-of-closest-approach, miss distance and risk tier
Co-orbital RPO relative-motion in the RIC frame for proximity assessment
Up-link jammer geolocation from ground bearing cuts, with a CEP ellipse
A companion Space Workstation for single-orbit analysis: passes, link budgets, up-link jamming geometry, coverage, Doppler and a counter-space taxonomy

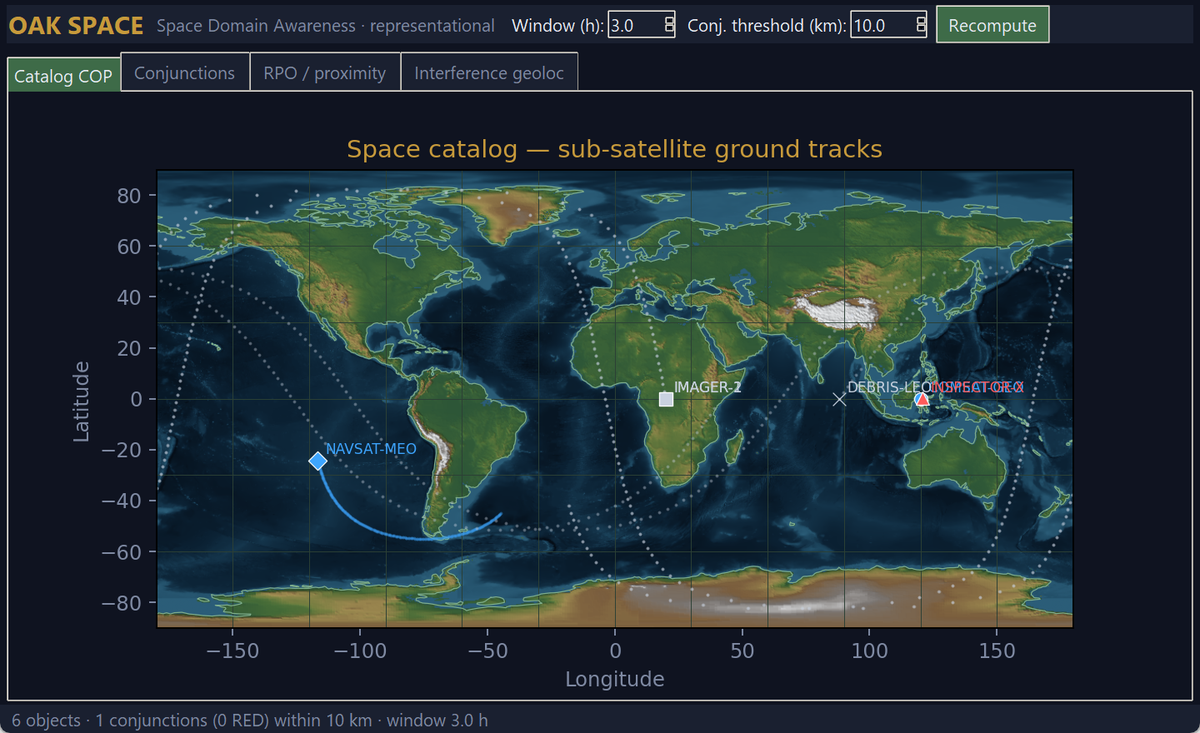

OAK Space — SDA Operations Console: catalog COP with ground tracks

Built on the core

Sovereign, unclassified, representational

OAK Space is first-principles physics on a notional object set — no operational catalog, no real TLEs and no exploit content. It reuses the EW SUITE's orbital and SATCOM libraries, carved into its own product tree.

Sovereign Canadian IP First-principles orbital mechanicsConjunction & RPO Manoeuvre & decayUp-link geolocation Offline world mapSingle offline installer
